K1100F Kjeldahl Analyzer

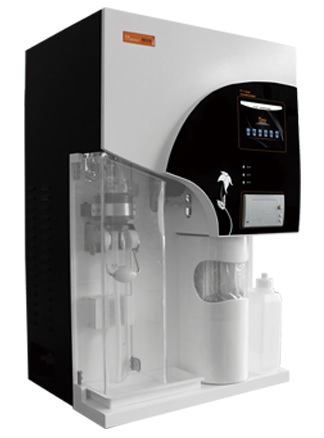

K1100F Automatic Kjeldahl Analyzer


1.High accuracy dozing and working: adopt 4 KNF pumps work for dozing, measurement liquid volume.
2. Complete compatible design: Using 300mL tubes(φ42mm), compatible with con-generic products perfectly
3. Easy Maintenance: Pre-install full functions of cleaning, include Digestion tube cleaning, Receiving cup cleaning, Alkali pipeline cleaning, Boric  acid  pipeline  cleaning,  Acid  washing,  Steam  bottle  evacuation. Support customer make the routine maintenance easily.



K1100F Automatic
Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation and high-quality components, can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.

Complete microcomputer control
Automatic completion of distillation, titration,calculation, printing, waste discharge and multiple protections, i.e.failure self-detection,hints of condensed water shortage, displacement of safety door and digestion tube and so on.

Large LCD Touch Screen Panel
Large LCD touch screen gives visual operation and abundant information,enabling user to have a good command of it.

Complete compatible design
Compatible with congeneric products perfectly

Performance advantage

Compatible with φ42 digestion tube
Titration while distillation, enhance the efficiency rapidly.
User friendly design, color touch screen, easy for operating
Faster ARM system, faster operating rate
Digester model SH220F and SH420F is matching K1100F, with φ42 digestion tube
Automatic waste discharge and cleaning ensure operator safety and save worktime.
External titration cup design gives operator real-time control of the whole test process.
Steam flow is controllable, satisfying different test requirements.
Regent barrel enjoys fluid absence warning function, ensuring smooth test going.
High-precision charging pump and titration ensure test results accuracy.
The temperature of distilled liquid is detected real time. If the temperature of distilled liquid is abnormal, to ensure the accuracy of experiment’s result, instrument will stop working.
Double distillation model is used to meet different experiments, to retard the speed of acid-base reaction.
Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.
USB or RS485 interface is optional for PC connection.

Measuring range0.1mg ~240mg N
Analysis time5~10min/sample
ReproducibilityAverage value relative error ±0.5%
Burette volume1.0μL/step
Sample capacitysolid≦5g/sample, liquid≦20mL/sample
Water consumption in the distillation process1.5L/min
Data storage capacity1800 groups
Power supply220VAC±10%, 50Hz
Net weight38Kg
