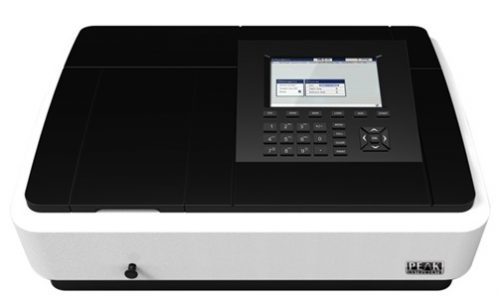

C-7000 Series

Steady, modern and elegant appearance design. Adopt the newest microcomputer technology and electronic control system. Optimized optical system and structure can both extend new functions and ensure the accuracy, stability and durability.

Main Features:

1. 7 inch TFT screen and long life, more comfortable and sensitive silicone buttons.

2. Support USB storage and different data formats such as Excel, txt and photos(*.csv, *.qua,*.txt,*.bmp). Users can output test data to flash memory, open and edit them on computers directly without any auxiliary software.

3. Strong extended capability: Standard 8GB memory can store huge test data and equipped with RS232, HOST USB port and standard USB interface

4. High-efficiency holographic grating of 1200 lines/mm and ultra-low stray light.

5. The equipment has Long-life socket type tungsten-halogen and deuterium lamps which can work up to 2000 hours, can switch the lamps according to test needs and record its working time automatically. Socket type lamps make the replacement much easier.

6. Excellent silicon photodiode can guarantee the equipment is highly sensitive and stable.

7. Huge sample chamber and various accessories can meet all kinds of needs.

8. Can be connected to printer directly and output test charts and data.

9. Powerful PC software can realize full wavelength scanning function.

Specifications:

Model

C-7000V

Screen

7-inch TFT screen.

Wavelength Range

320 – 1100nm

Slit Width

2nm

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

≤0.1nm

Photometric Accuracy

0.3%T (0-100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)

Photometric Accuracy

≤0.15%T (0-100%T) , 0.001A(0-0.5A) , 0.002A(0.5-1A)

Stray Light

≤0.05%T@220nm,360nm

Stability

±0.001A/h@500nm

Baseline Flatness

±0.0015A

Noise

±0.0005A

Working Mode

T,A,C,E

Wavelength Setting

Automatic

Photometric Range

0-200%T, -0.3 – 3A

Detector

Solid Silicon Photodiode

Software

Optional

Printer

Optional

Keypad

Silicone buttons

Data Port

USB

Light Source

Tungsten Halogen Lamp

Power requirements

AC 110-220V 50-60Hz

Humidity Range

Less than 85%

Shipping Dimensions and Weight

770*630*340mm, 27kg
