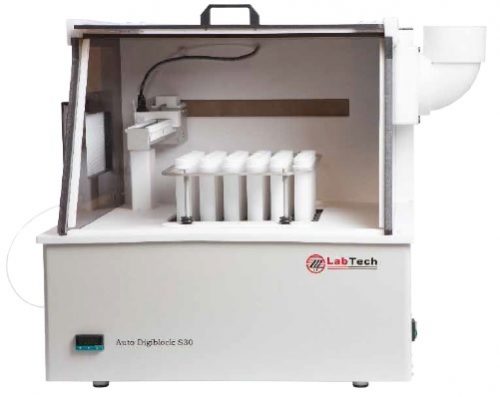

S30 AutoDigiBlock
LabTech AutoDigiBlock sample preparation system combines the advantages of digiblock digestion with the automated functions by LabTech-developed software workstation. It is designed to relieve the analyst from druggery and monotonous repetition of routine tasks wihich happen in the digestion of a large quantity of samples and subsequent dilution/acid evaporation. Instead of completing the whole digestion process, the analyst just need to weigh and add properly samples to the digestion vessels, and set the automated digestion procedure with workstation, press Start and done. AutoDigiBlock will automatically and accurately perform all the repetitive processes including reagent adding, shaking well, heating, lifting up, cooling down, and keeping volume constant etc. At the end of the run, samples are treated and ready for the further analysis.
It features high effiiciency, safety, stability and green.
Technique Features

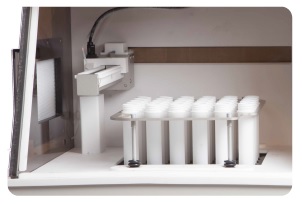

Fully anti-corrosion design
Fully PTFE operation platform
Fully PFA liquid delivery systems
FKM sealing system
All parts which have the possibility of exposure to acids are PTFE processed
Fully anti-corrosion design

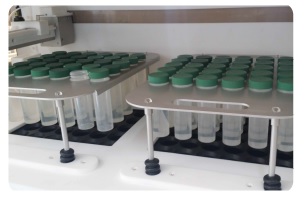

Dual separate heating blocks
Automated functions
Auotmated reagent adding
Automated vessel shaking
Automated vessel lifting up/down
Automated constant volume keeping
Automated acid exhausting
Intelligent warning functions
High/Low temperature alarm
Monitor residual acid in each channel and warning function
Warning when waste liquid bottle is full
Emergency stop
Unique mechanical design
Cross array of heating material plus PID controltechnique
enables high uniformity of temperature ≤ 1ºC@150℃.
Dual separate modules design ensures different
programming control.
Automated shaking, lifting of digestion vessels
Controllable heating speed enables accurate control of digestion process
Various clean, graduated digestion vessels no need pre-cleaning
（PP, PTFE）
Automated Systems
Reagent adding system
High precision delivery pump ensure constant and accurate acid adding X,Y movement with screw rod robot arm design ensures long lifespan without consumables.
Up to 9 different reagent channels for all application Tilt adding mouth design avoids powder samples adhere to the wall and liquid splashing
Full PFA delivery tubes support all reagents
Self-clean function, clean times and amounts can be preset
Lift up/down system
Separate dual modules design, the two modules can shake up independently
Optical coupler protection design enables accurate control of lifting height
Cooling time can be set freely
Digestion vessel shake up system
Patented vibration system with stable performance
Separate dual module design, shaking of the two modules can be controlled independently
Various shaking modes: shaking before adding sample, shaking during digestion process, shaking after constant volume, shaking after cooling.
Controllable shaking speed
Automatic reset after shaking
Constant volume system
Ultrasonic sensor ensures accurate volume control
Standard curve calibration for ultrasonic sensor
Fume removal system
Polycarbonate fumehood with excellent anticorrosion
Standard HEPA filtration system is safe and no contamination
Filter net can be easily replaced
Anticorrosion and powerful blower

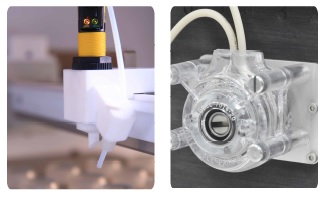

A cid adding+P eristaltic pump

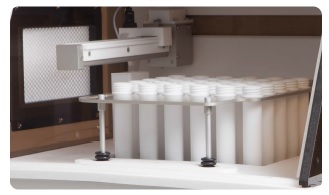

Lift up/down system
Ultrasonic sensor

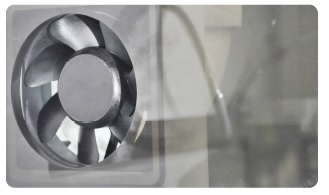

FumeHood
Adjustable exhaust power according to sample needs

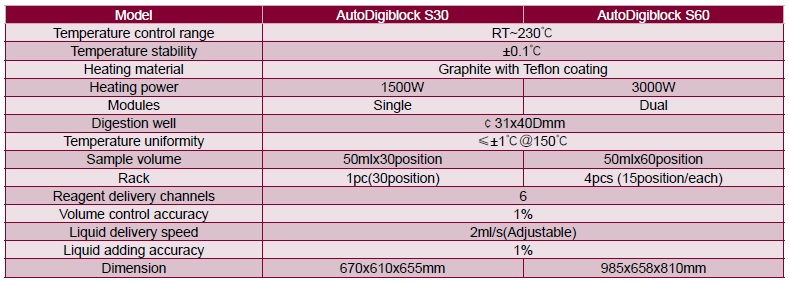

Specifications

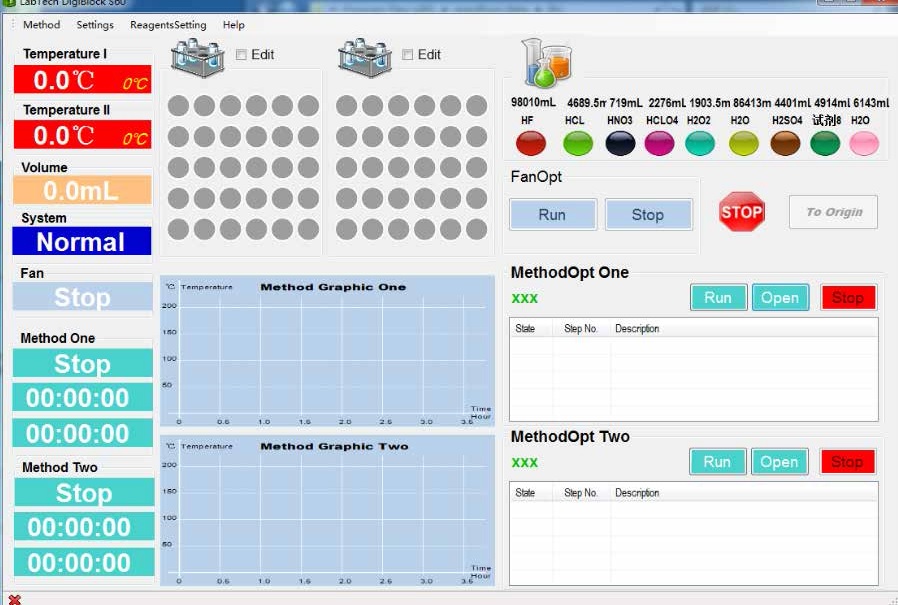

Workstation
The system is connected to a PC which controls all functions
seamlessly.
User friendly and graphic interface
Automatic identify system state when switch on
Real-time display system state
Residual acid display and warning function
Emergency stop key ensures a safe operation
Wireless remote control
Wireless remote control and online video function
Monitor the real working status via a smart phone or other terminals
You could remotely check its temperature, running time, method details
Remote emergency stop for real unattended operation
