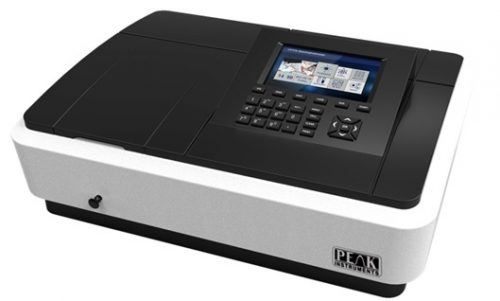

C-7100/7200 Series

Steady, modern and elegant appearance design. Adopt the newest microcomputer technology and electronic control system. Optimized optical system and structure can both extend new functions and ensure the accuracy, stability and durability.

Main Features

1. 7 inch TFT screen and long life, more comfortable and sensitive silicone buttons. The instrument can show various scanning curves and charts for users to complete various tests without computers.

2. Support USB storage and different data formats such as Excel, txt and photos(*.csv, *.qua,*.txt,*.bmp). Users can output test data to flash memory, open and edit them on computers directly without any auxiliary software.

3. Advanced hardware and 32-bit Cortex_M3 processor with the clock speed 120MHz. The equipment can store 5000 pieces of data and 500 curves.

4. High-efficiency holographic grating of 1200 lines/mm and ultra-low stray light.

5. The equipment has Long-life socket type tungsten-halogen and deuterium lamps which can work up to 2000 hours, can switch the lamps according to test needs and record its working time automatically. Socket type lamps make the replacement much easier.

6. Excellent silicon photodiode can guarantee the equipment is highly sensitive and stable.

7. Huge sample chamber and various accessories can meet all kinds of needs.

8. Can be connected to printer directly and output test charts and data.

9. Powerful PC software.

10. Strong extended capability: Standard 8GB memory can store huge test data and equipped with RS232, HOST USB port and standard USB interface.

UI Design

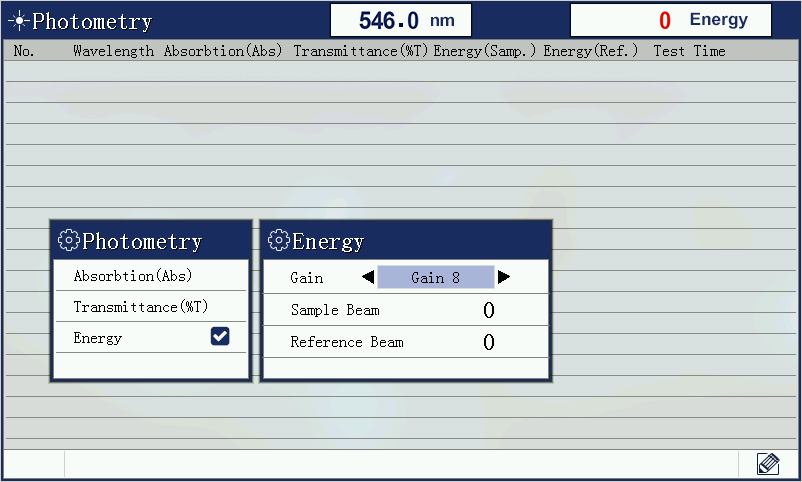

1. Photometry

Absorbency and transmittance test.

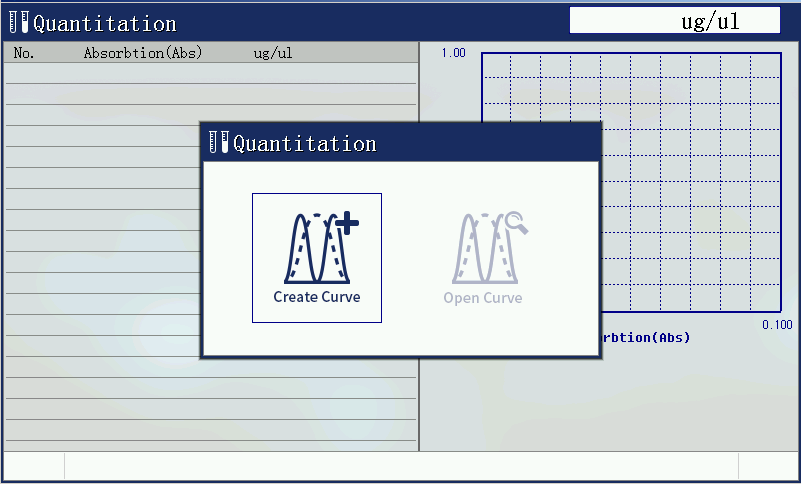

2. Quantitative test.

To test sample solution concentration, you can choose different methods like coefficient, standard curve, linearity, linear zero crossing and quadratic. Operators can choose single, double and tri-wavelength and change the coefficients of double and tri-wavelength. Advance arithmetic make curvilinear regression more precise and test data more accurate.

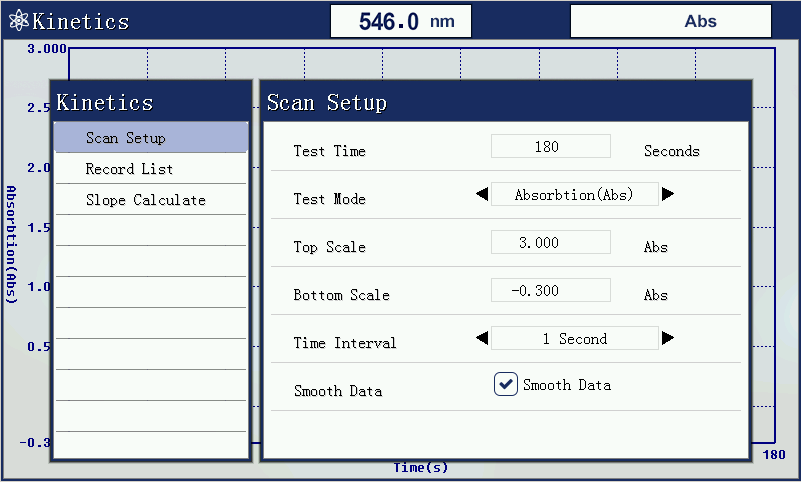

3. Kinetics Measurement (Time Scanning)

To test the sample chemical reaction process by fixed time scanning the sample solution with fixed wavelength. The equipment can calculate its changing rate after entering the corresponding parameters.

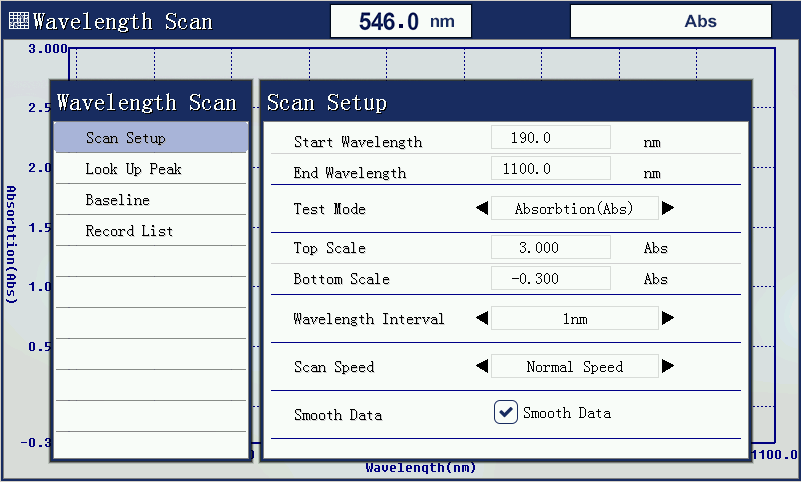

4. Wavelength Scanning (Qualitative Test)

To test sample solution absorbency peak, can scan the sample characteristic curve of any wavelength range between 190 and 1100nm. And do the chart overlay and arithmetic.

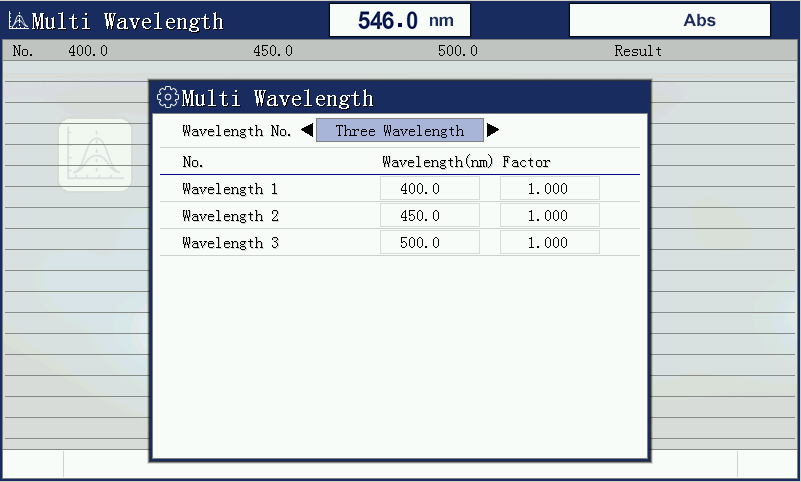

5. Multi wavelength testing

It is much more convenient for users to test the absorbency or do the arithmetic in case of several wavelengths for the same sample solution, which is much simpler than single wavelength testing.

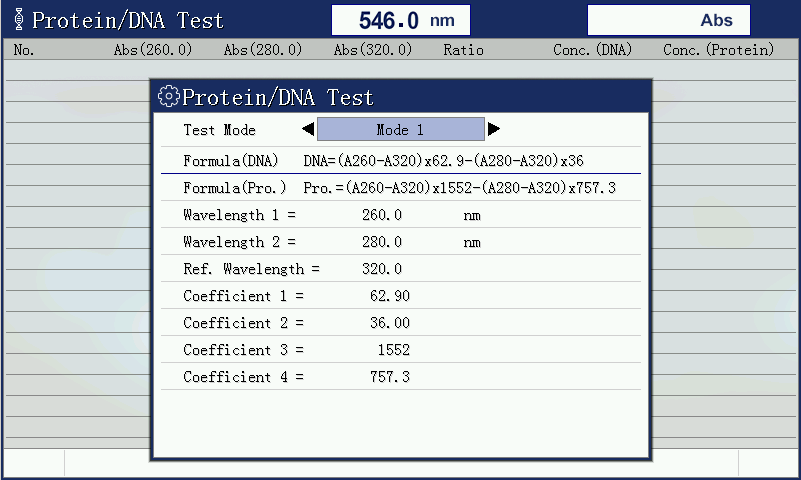

6. DNA/Protein Measurement

It is a special function for specific users to make the operation easier.

Specifications

Model

C-7100

C-7100S

C-7100A

C-7200

C-7200S

C-7200PC

C-7200A

Display

7 inch TFT

No Screen

7 inch TFT

Keyboard Control

Silicone Buttons

No Buttons

Silicone Buttons

Optical System

Single Beam

Double Beam

Holographic grating, 1200 lines/mm

Slit Width

2nm

1nm

0.5,1,2,4,5nm

2nm

1nm

2nm, 1nm

0.5,1,2,4,5nm

Wavelength Range

190 – 1100nm

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

≤0.1nm

Photometric Accuracy

0.2%T(0-100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)

Photometric Repeatability

≤0.15%T(0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)

Stray Light

≤0.03%T@220nm,360nm

Stability

±0.001A/h@500nm

Photometric Range

0-200%T, -0.3-3.0A, 0-9999C(0-9999F)

Baseline Flatness

±0.0015A(200-1000nm)

Noise

0.0003A@500nm

Working Mode

T,A,C,E

Wavelength Setting

Automatic

Scanning Speed

High, Medium and Low

Detector

Solid Silicon Photodiode

Light Source

Tungsten Halogen/Deuterium Lamp

Data Output

RS232C Serial, USB Drive, USB HOST

Processor

Cortex_M3, 120Mhz

Power Requirements

AC 110-220V 50-60Hz

Shipping Dimensions and Weight

770*630*340mm, 27kg
