Twenty-one percent (21%) of the air we breathe is composed of oxygen . . .
Using Pressure Swing Adsorption (PSA) technology, the OGSIModel OG-15 extracts oxygen from the atmosphere, concentrating it to 93% (± 3%) purity, and delivering the oxygen to any application.
Dependable
The OG-15 is completely self-contained. Its internal air compressor, filtration system, zeolite sieve, surge tank, and flow control system were designed for 24 hour operation.
Durable
The OG-15 is built on a powder coated steel chassis. Its anodized aluminum sieve beds are fitted with custom molded composite end caps for years of reliable service. Weighing 78 lb (35 kg) the OG-15 is the industrial strength oxygen concentrator.
Safe
Why bother with the danger of high-pressure cylinder oxygen? The OG-15’s built-in regulator allows you to set the delivery pressure according to your needs. The 0.3 hp compressor maintains an internal pressure of less than 9 psi, and delivers an optimal flow of oxygen up to 12 psi.
Economical
Oxygen is free! Eliminate the unnecessary costs of transportation, storage, and cylinder rental. The OG-15 uses less than 0.7 kW of electricity to deliver up to 15 standard cubic feet of oxygen per hour (SCFH). This product is cost effective and energy efficient.
Simple to Use and Maintain
With a lighted on/off switch, integrated control panel, digital hours meter, custom flow gauges and controls, the OG-15 is truly user friendly. Just plug it in, turn it on, and set the desired pressure and flow. Check and clean the inlet air filter every 6 months, and you’re done. The zeolite sieve (which actually separates oxygen from nitrogen) is regenerative, and does not need to be replaced for the life of the unit.
The Model OG-15 was made easy to operate. All of the controls are on the front panel. The Power Switch, Hoursmeter, Gauges, Regulator and Flowmeter are easy to view and/or manipulate.
Original Equipment Manufacturer (OEM) Configurations
For integrators, the OG-15 OEM is available. This basic configuration includes the sieve beds, timing board, and a valve secured to a mounting plate for easy installation in the purchaser’s enclosure. The benefit of this OEM design is it provides a lower cost option to customers who want to supply their own feed air, instrumentation, and enclosure for a total oxygen producing package to end users.
Options Available:
230 VAC 50/60 HZ
No Cover
Anti-vibration Feet (for tabletop use)
Quiet Muffler Option
Pressure Switch and Relief Valve
Oxygen Generating System
Evolved from the extremely popular OG-15 model, the OG-20 extracts oxygen from the atmosphere, concentrates it to 93% (± 3%) purity, and delivers the oxygen to any application. The OG-20 offers up to 25% more oxygen flow rate and delivery pressure.
Dependable
The OG-20 is completely self-contained, and its overall design is built for 24 hour operation. It produces up to 20 standard cubic feet per hour (SCFH)/ 10 liters per minute (LPM) at 1-20 PSIG, with oxygen purities up to 95%. The total industrial strength and quality of the OG-20 will provide the end-user with years of dependable, reliable, and virtually maintenance-free operation.
Durable
The OG-20 is built on a powder coated steel frame/chassis. Its internal air compressor, aluminum sieve beds with state-of-the-art molecular sieve material, filtration and flow of control systems are designed for years of continuous and reliable service. Each OG-20 goes through rigorous quality control testing procedures. Weighing only 80 lb (36 kg) the OG-20 is available in 115 VAC/60 HZ, 230 VAC/50 HZ and 230 VAC/60 HZ models for use worldwide!
Diverse
Whether you are dissolving high levels of O2 for your fish farm or boosting cell productivity in systems such as Wave Bioreactor cell culturing equipment, the OG-20 can deliver oxygen to your application.
Safe
The OG-20 is being used more and more as an alternative to using high pressure, dangerous, and costly cylinder/liquid oxygen. Bottom line . . . saving the end user significant dollars on their oxygen costs. The OG-20’s built-in adjustable regulator allows you to set the oxygen delivery pressure according to your requirements. The 0.3 hp oilless piston air compressor maintains an internal pressure of less than 32 psi and delivers an optimal flow of oxygen at up to 20 PSIG.
Economical
Oxygen is free! Eliminate the unnecessary costs of transportation, storage, and oxygen cylinder/liquid rental. The OG-20 uses less than 0.7 kW of kilowatt electricity to deliver up to 20 SCFH of oxygen.
Simple to Use and Maintain
With a lighted on/off switch, integrated control panel, digital hours meter, custom flow gauges and controls, the OG-20 is truly user-friendly. Just plug it in, place the on/off switch in the “on” position, and set your oxygen delivery flow and pressure. The molecular sieve/zeolite (which separates the oxygen from nitrogen) is regenerative, and should not need to be replaced for the life of the unit under normal operating conditions.
Original Equipment Manufacturer (OEM) Configurations
For integrators, the OG-20 OEM is available. This basic configuration includes the sieve beds, timing board, and a valve secured to a mounting plate for easy installation in the purchaser’s enclosure. The benefit of this OEM design is it provides a lower cost option to customers who want to supply their own feed air, instrumentation, and enclosure for a total oxygen producing package to end users.
OG-20 Modifications/Options Available:
* 230 VAC/50/60 Hz Model
* Reduce Noise Option
* Extra Inlet Air Filter
* Set of Anti-vibration Feet (4)
* Set of Casters (4)
* Pressure Switch and Relief Valve (psi deviation)
* Bacteria Filter (Installed)
Eliminate the Costs of Transportation, Storage and Cylinder Rental

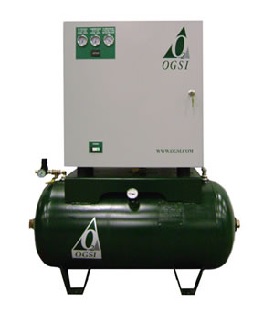

The OGS-20 oxygen generator uses Pressure Swing Adsorption Technology (PSA) to deliver a constant flow of up to 20 standard cubic feet per hour (SCFH)/ 9 liters per minute(LPM) of medical grade oxygen at a pressure of up to 90 psi. Ideal for Veterinary Clinics/Offices.
Dependable
Every oxygen generator is assembled and tested in our New York State production facility. The OGS-20’s internal air compressor, filtration system, zeolite sieve, surge tank and flow control system were designed for 24/7 operation.
Durable
From the tank assemblies, to the oxygen-clean brass tubing and valves, our oxygen generators are built to last. They even operate in the harsh environments of Africa, Asia, South America and the Yukon.
Economical
Oxygen is free! Eliminate the unnecessary costs of transportation, storage, and cylinder rental. The OGS-20 uses less than 1.1 kW of electricity to deliver up to 20 ft.3 of oxygen per hour.
Simple to Use and Maintain
With a lighted on/off switch, hours meter, custom flow gauges and controls, the OGS-20 is truly user-friendly. Just plug it in, turn it on and set the desired pressure and flow and you’re done.
Automatic Operation
Automatically starts and stops based on the need for oxygen and the pressure in the storage tank.
The OGSI Medical Oxygen Generating System (available in MOGS-50 and MOGS-100 models) has been designed to produce oxygen onsite and fill high pressure cylinders (up to 2200 psi) or to supply oxygen directly at up to 70 psi. This system uses oil-free air compressors and modular oxygen generators for redundancy and reliability.
The system produces medical grade oxygen in accordance with the US Pharmacopeia specifications. There is a continuous gas quality monitoring system included with automatic shutdown if a fault occurs. OGSI is the only onsite oxygen generator manufacturer to offer equipment with trans-filling and blast containment.
Cost Reduction
This system can reduce oxygen supply costs by 80% or more in most cases. Less than 1 kWh of energy is required to fill one ‘M’-size oxygen cylinder and all delivery and handling charges from your current supplier are eliminated.
Disaster Preparedness
By making oxygen and filling cylinders at your site the uncertainty and logistics of delivered oxygen supplies are eliminated. With this system in place care providers are also assured that in the event of a disaster their oxygen supply chain will not be in jeopardy. The system itself can also be transported for use at a disaster site. It can be moved by truck and fits easily through a standard 36″ wide doorway.
Target Customers
Typical customers for this system include anyone in the Emergency Medical Services industry (ex. Fire Stations, Ambulance Services) along with Hospitals, Clinics, Nursing Homes and Veterinary Centers.
Features
* Emergency-Stop button
* PLC controller with NEMA 4 electrical enclosure and UL® listed electrical panel
* Touchscreen operator interface panel
* Two H size oxygen cylinders installed in an integral rack
* Sound attenuating enclosure with slam-action latches and lift-off hinges
* Two position containment fill station accommodates oxygen cylinders up to 31″ overall length
Options
- Remote fill hose with up to 75 feet of high pressure 3000 psi hose for re-filling cylinders on ambulances without having to remove them
