N2 WITH INTEGRATED COMPRESSOR

APPLICATIONS: LC/MS

ZEFIRO LC/MS
20-25-35-40

ZEFIRO Nitrogen Generator is designed specifically as
a stand-alone system to provide nitrogen to single LC/MS
applications which require a constant and autonomous
supply of nitrogen flux.
The Nitrogen generator uses pressure swing adsorption technology (PSA)
to produce nitrogen gas. This system uses carbon molecular sieve (CMS)
which selectively adsorbs oxygen and water vapor molecules under high
pressure, while allowing Nitrogen to pass through. The alternation between
purification and regeneration of the sieve bed pressure Vessels ensure
continuous nitrogen flow production.

Technical data

APPLICATIONS:   LC/MS

ZEFIRO LC/MS 65

ZEFIRO Nitrogen Generator is designed specifically as a stand-alone system to provide nitrogen flux to single LC/MS applications which require a high nitrogen consumption or allows two standard LC/MS to be supplied contemporaneously.
The Nitrogen generator uses membrane Technology to produce nitrogen gas at specific purity required.

Technical data

APPLICATIONS:     LC/MS that need Nitrogen & Air

ZEFIRO LC/MS
COMBINED

ZEFIRO Nitrogen Generator LC/MS COMBINED is specifically designed to
supply Nitrogen & Dry Air for all the LC/MS that need Nitrogen & Air. The
Nitrogen generator uses membrane Technology to produce nitrogen gas at
specific purity required.
The internal oil free air compressor which is firstly pre filtered provide also
to the exhaust air flow which is treated by a drying filter.

Technical data

* All LC/MS brands can be suppliend combining max 30 l/min of N2 or max 70 l/min of AIR

APPLICATIONS:    All ABI SCIEX LC/MS that need Nitrogen & Air

ZEFIRO combined

ZEFIRO combined Nitrogen Generator  is specifically designed to
supply Nitrogen & Dry Air for all the ABI SCIEX LC/MS that need Nitrogen & Air.
The Nitrogen generator uses membrane Technology to produce nitrogen gas at
specific purity required.
The internal oil free air compressor which is firstly pre filtered provide also
to the exhaust air flow which is treated by a drying filter.

Technical data

* STP: Standard Temparature and Pressure (20°C, 1 atm)

APPLICATIONS:     AGILENT LC/MS

ZEFIRO LC/MS
DUAL PURITY

ZEFIRO Nitrogen Generator LC/MS DUAL PURITY is specifically designed to meet the gas flow, purity and pressure requirements of AGILENT LCMS instruments.
The system supplies simultaneously Nitrogen for LC/MS & ultra high purity nitrogen for the collision cell.

APPLICATIONS:      ELSD

ZEFIRO 10 ELSD

ZEFIRO Nitrogen Generator ELSD series is specifically designed to meet the gas flow, purity and pressure requirements of Evaporative Light Scattering Detectors. The Nitrogen generator uses pressure swing adsorption technology (PSA) to produce nitrogen gas.
This system uses carbon molecular sieve (CMS) which selectively adsorbs oxygen and water vapor molecules under high pressure, while
allowing Nitrogen to pass through.

Technical data

STP: Standard Temperature and Pressure (20°C, 1 bar)

Appications:  GC and ICP

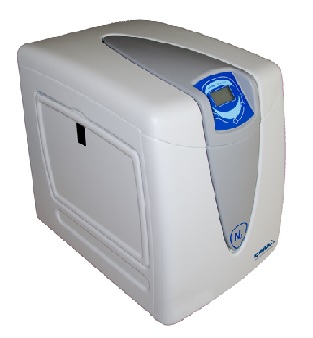

ZEFIRO 5 HP
& mini-ZEFIRO 1 HP

The model HP (High Purity) Nitrogen Generator is designed specifically for use as make up and carrier gas for GC Applications, which require ultra high purity nitrogen for operation.
The HP nitrogen generator series is also suitable for ICP.
The Nitrogen generator use pressure swing adsorption technology (PSA) combined with a pressure management in two steps (DP PSA) to produce pure nitrogen gas with ultra high purity.

APPLICATIONS:    Solvent Extraction System (ASE) – Sample Preparation

ZEFIRO HIGH PRESSURE

The HIGH PRESSURE nitrogen generator has been specifically designed to meet the gas flows, purity and pressure requirements of the Accelerated
Solvent Extraction System (ASE®), the technique for the extraction of solid and semisolid sample matrices using common solvents at elevated
temperatures and pressures. The Nitrogen reach the maximum pressure of 11 bars.
