micap-oes1000

Standard torch dimensions (20 mm) with 1.5 mm injector (2.5 mm injector option) designed around the fixed position torch holder assembly.

Variable speed four-channel peristaltic pump and concentric 1 mL/min nebulizer are standard sample introduction assembly (SIA) components.

Vertical torch position with axial viewing and automated, uniform plasma tail removal.

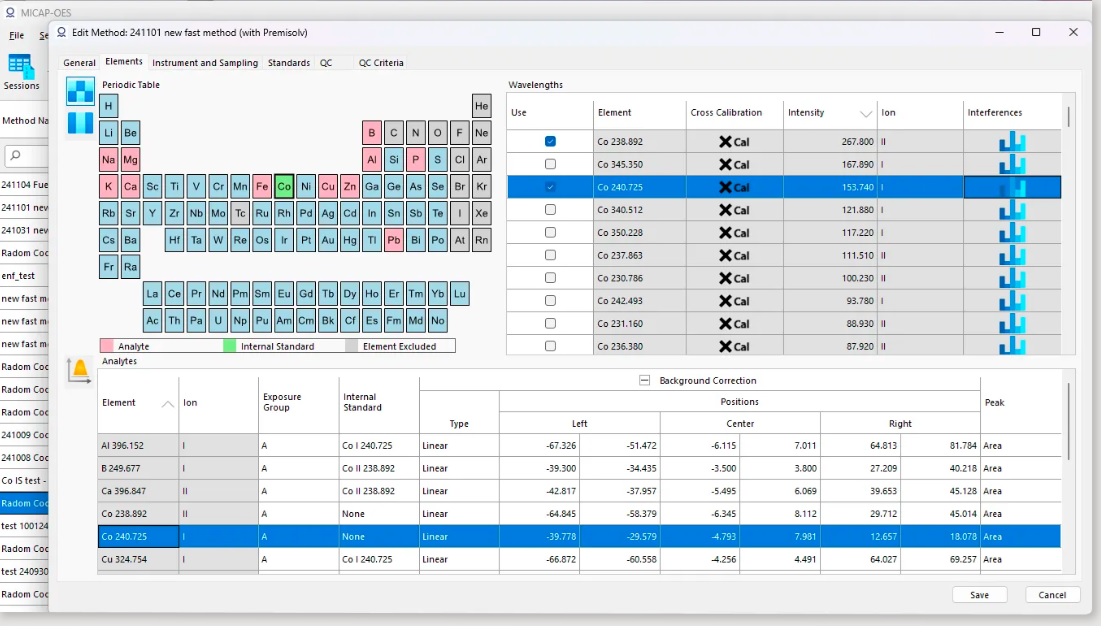

Echelle Spectrometer simultaneously measures the entire wavelength range with every solution injection.

Power requirements:

• Mains power: 208 V to 240 V/10 A
• No water cooling required

Exhaust:

• 4 inch (100 mm) exhaust with flow rate between 100 – 200 cfm (1.5 – 2.9 m/s)

Gas flows:

• Mass flow controlled coolant, auxillary and nebulizer gas for reliable and stable sample measurement
• Typical plasma gas flow is 14L/min
• Nitrogen gas can be sourced from liquid dewar, compressed gas cylinder or nitrogen generator

Size:

• [W] 20.7 in (525 mm) x [H] 22 in (560 mm) x [D] 14 in (350 mm)

Weight:

• MICAP Plasma Source Unit 42 lbs (19 kg)
• Total weight of MICAP with Spectrometer 67 lbs (30 kg)

Detector

• sCMOS

Array diagonal:

• 31 mm

Resolution:

• 2048 x 2048

Cooling:

• Peltier cooled to -10 °C

Other parameters:

• Pixel size: 11 µm x 11 µm
• Frame rate: 24 fps

Wavelength range:

• Simultaneous measurement 194 nm – 625 nm + 766 nm

Slit Width:

• 30 um slit

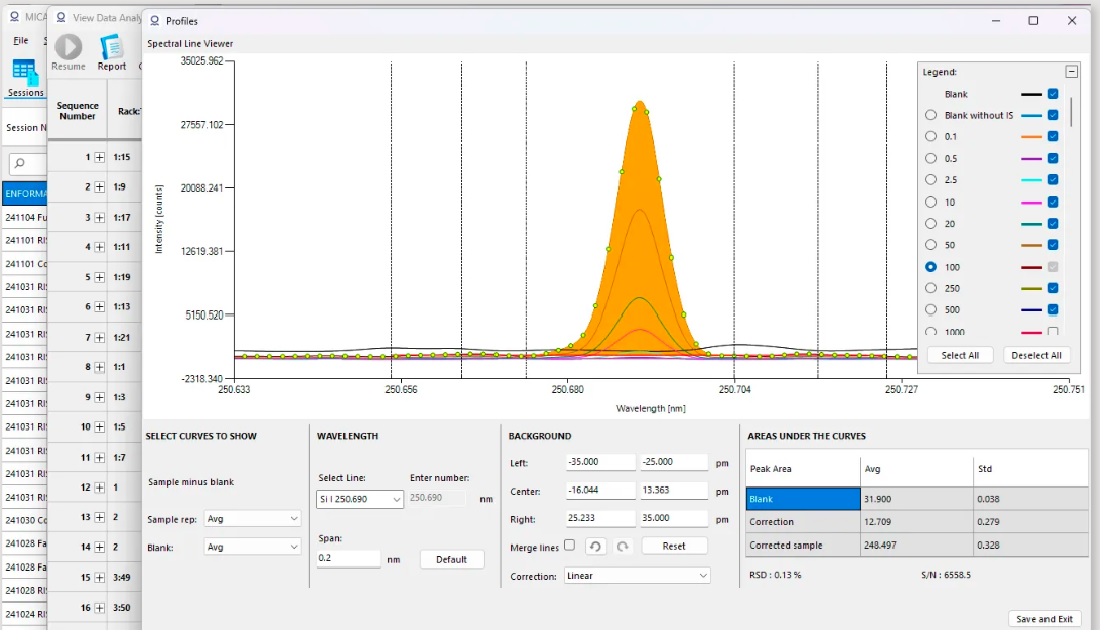

Resolution:

• 5pm – 30 pm, 7 pm at 200 nm

Operating environment:

• Temperature: 20 – 25 °C (68 – 77 °F)
• Relative Humidity: 20-60 %
