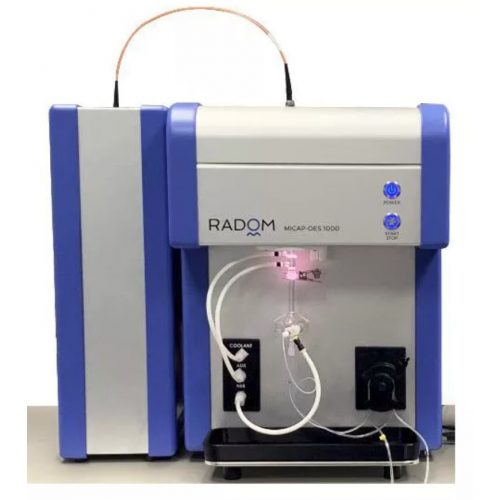

The World’s Smallest ICP: Unveiling the MICAP-OES 1000
Introducing the MICAP-OES 1000 from Radom Corporation, a groundbreaking spectrometer that stands out as the smallest in the world.
This compact, powerful instrument is revolutionizing the field of spectroscopy with its ability to perform on-location core sample screening for faster results.
MICAP-OES 1000 provides high-resolution and precise simultaneous measurements of elements. It is equipped with Radom Intuitive Software (RIS) and Radom’s revolutionary Cerawave technology [https://radomcorp.com/technology/] – a technological breakthrough that harnesses RF energy providing powerful and sustainable plasma, allowing instruments and machinery in a variety of industries to achieve outstanding performances, and results. It’s a testament to efficiency, combining portability and ease of use with advanced technological capabilities.
MICAP-OES 1000
Plasma Source
Standard torch dimensions (20 mm) with 1.5 mm injector (2.5 mm injector option) designed around the fixed position torch holder assembly.
Variable speed four-channel peristaltic pump and concentric 1 mL/min nebulizer are standard sample introduction assembly (SIA) components.
Vertical torch position with axial viewing and automated, uniform plasma tail removal.
Echelle Spectrometer simultaneously measures the entire wavelength range with every solution injection.
Power requirements: Mains power: 208 V to 240 V/10 A
No water cooling required
Exhaust: 4 inch (100 mm) exhaust with flow rate between
100 – 200 cfm (1.5 – 2.9 m/s)
Gas flows: Mass flow controlled coolant, auxillary and nebulizer
gas for reliable and stable sample measurement
Typical plasma gas flow is 14L/min
Nitrogen gas can be sourced from liquid dewar,
compressed gas cylinder or nitrogen generator
Size: [W] 20.7 in (525 mm) x [H] 22 in (560 mm) x [D] 14 in
(350 mm)
Weight: MICAP Plasma Source Unit 42 lbs (19 kg)
Total weight of MICAP with Spectrometer 67 lbs
(30 kg)
Camera
Detector : sCMOS
Array diagonal: 31 mm
Resolution: 2048 x 2048
Cooling: Peltier cooled to -10°C
Other parameters: Pixel size: 11 µm x 11 µm
Frame rate: 24 fps
Optical Emission Spectrometer
Wavelength range: Simultaneous measurement
194 nm–625 nm + 766 nm
Slit Width: 30 um slit
Resolution: 5pm – 30 pm, 7 pm at 200 nm
Operating environment: Temperature: 20 – 25 °C (68 – 77 °F)
Relative Humidity: 20-60 %
