Overviews
ICP-3000 Inductively Coupled Plasma Optical Emission Spectrometer
ICP-3000 Inductively Coupled Plasma Optical Emission Spectrometer is powerful simultaneous full—spectrum direct-reading spectrometer designed to trace elemental analysis in various samples with excellent analytical precision and accuracy. ICP2060 has wide wavelength range of 190nm to 800nm with 2400 line grating. The instrument features superb optical system, full automation as well as powerful analysis software with auto-matching.
Features
Features

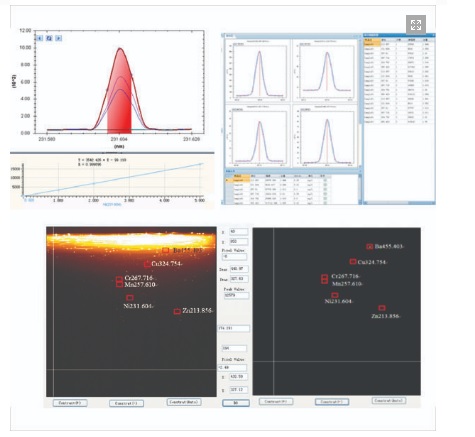

- Advanced CID detector and Full-frame Imaging entire ICP-OES spectrum can be analyzed(165-900 nm)
- Fast analysis, analyzing 5-8 elements per minute
- Intuitive Software controls all parts of the instrument
- Fast auto-matching
- Automatic cooling water system
Specifications
Technical Specifications | |
|---|---|
| Detector Specifications | Spectrometer Specifications |
| Detector Type: Charge injection detector (CID) | Grating: 52.67 Ip/mm, 64°blaze angle, Zerodur® substrate (produced by SCHOTT-Germany) with near zero thermal expansion coefficient |
| Pixel Size: 27 x 27, Random Access Integration (RAI) | Prism: Ultra-pure Corning UV fused silica, transmittance 99.6% at 170nm. |
| Read mode: Full frame readout (FF), Random Access Integration (RAI) with non-destructive read (NDRO) | Wavelength range: standard 175nm-900nm, optional DUV optical components extend wavelength range to 165nm 900nm |
| Linear dynamic range 10^8 | Focal Length: 430 mm |
| Wavelength response range: 165nm-1000nm | Resolution: 0.0068nm@200nm |
| Quantum efficiency: No coating-up to 35% within 200nm UV region | Optical Chamber: Precise thermostat 35±0.1 C; N purge: normal purge 2L/min, fast purge 4L/min |
| Detector Cooling: High efficiency triple stage thermoelectric cooling device maintains the detector at -45 C | Stray light: Equivalent background concentration of 10000ppmCa solution |
| RF Generator | Other Specifications |
| Input/Output Power: AC 220V-input, 20A 700-1600W-output | Analysis Speed: Single CID readout time- 2ms, analysis for all elements can be achieved within one minute |
| Stability: Frequency- < 0.05%, output power- <0.1% | Detection Limits: 1ppb-10ppb for most elements |
| Accuracy: 2W | Stability: relative standard deviation RSD <0.5% (<1% within 2 Hours) |
| Working Frequency: 27.12MHz | Size: 130cm x 84cm x 74cm |
Applications
Application Fields
- Metallurgical industry: analyze As, Bi, Pb, Sb, Sn and other elements
- Geological mineral industry: analyze Ca, Mg, Na, Fe, Cu, Mn, Zn, Co, Ni, Au, Ag and other elements in the rock samples
- Biological and chemical industries
- Petrochemical and metallurgic industries: Analysis of 30+ elements in crude oils- Fe, Na, Mg, Ni, V, Ca, Pb, Mo, Mn, Cr, Co, Ba, As, etc.
- Pharmaceutical, Health and Food safety
